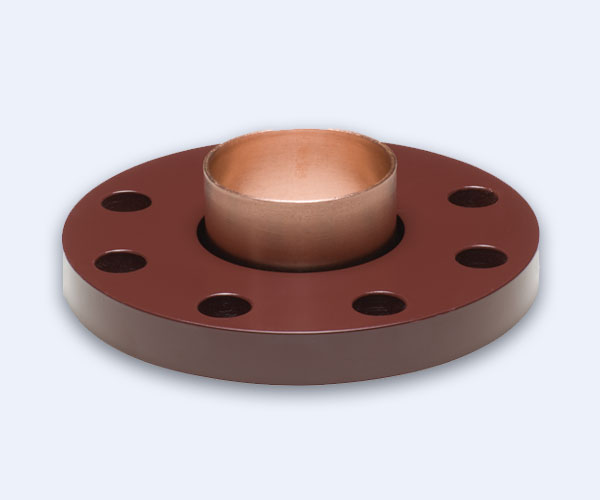

CTS Copper Flange Adapter 300lb
- Submittal / Data Sheet
- CTS Copper Flange Adapter 300lb Spec Data Sheet
Specifications
SERVICE TEMPERATURE: -66F to +272F
DIMENSIONS OF SOLDER JOINT Manufatured to ASME B 16.22-95
| Size | Code | Working Pressure (at atmospheric) |
Material | Thickness |
|---|---|---|---|---|
| 1-1/2″ | WBG3015 | 600 PSI | Plate Steel | .709 |
| 2″ | WBG3020 | 600 PSI | Plate Steel | .787 |
| 2-1/2″ | WBG3025 | 600 PSI | Plate Steel | .866 |
| 3″ | WBG3030 | 600 PSI | Plate Steel | .0945 |
| 4″ | WBG3040 | 600 PSI | Plate Steel | 1.063 |
| 5″ | WBG3050 | 600 PSI | Plate Steel | 1.141 |
| 6″ | WBG3060 | 600 PSI | Plate Steel | 1.181 |
| 8″ | WBG3080 | 600 PSI | Plate Steel | 1.378 |

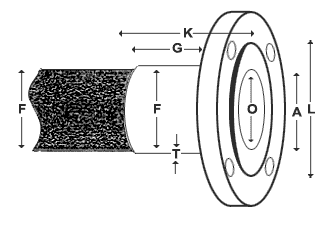

| Size | Length (K) Min |
Female End (F) |
Depth (G) Min |
Thickness (T) Min |
ID (O) Min |
OD Cu Flange (L) Min |
|
|---|---|---|---|---|---|---|---|
| Min | Max | ||||||
| 1-1/2″ | 1.81 | 1.62 | 1.63 | 1.09 | .051 | 1.47 | 3.10 |
| 2″ | 1.85 | 2.12 | 2.33 | 1.34 | .059 | 1.94 | 3.70 |
| 2-1/2″ | 2.02 | 2.62 | 2.63 | 1.47 | .067 | 2.42 | 4.20 |
| 3″ | 2.35 | 3.12 | 3.13 | 1.66 | .075 | 2.89 | 5.00 |
| 4″ | 2.81 | 4.12 | 4.13 | 2.16 | .096 | 3.84 | 6.20 |
| 5″ | 3.87 | 5.12 | 5.13 | 2.66 | .111 | 4.70 | 7.30 |
| 6″ | 4.31 | 6.12 | 6.13 | 3.09 | .124 | 5.72 | 8.40 |
| 8″ | 5.50 | 8.12 | 8.13 | 4.00 | .875 | 8.80 | 13.50 |
Drilling to Match ANSI B 16.5
Features
- Sizes 1-1/2″ thru 8″
- Flanges shall be drilled to ANSI B 16.5.
- 300 Standard powder coated with a EPDM.
- Insulator adhered to the plate steel flange.
- Protruding inside of the steel flange to prevent contact with the Copper.
- Companion Flange Adapter.
- The Copper component of the flange adapter shall be manufactured to ASME B16.22 – 1995.
